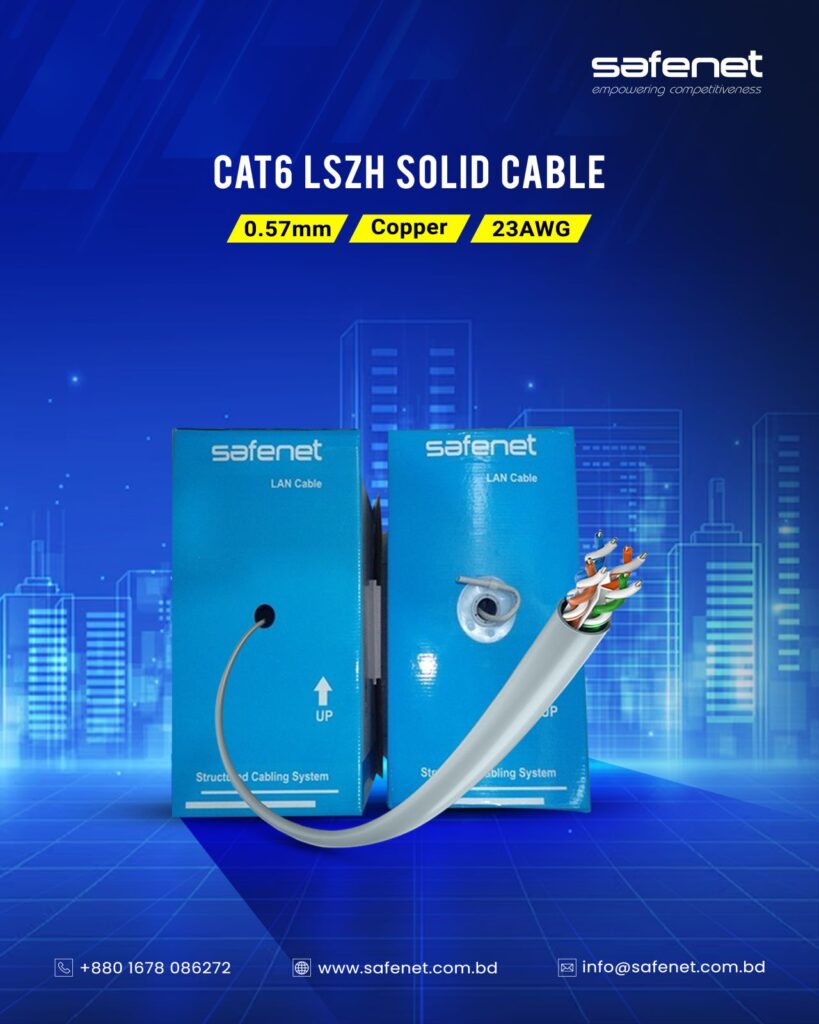

Cat6 cable price in bd safenet 32-3350BL BDT price is 16,000/- You can buy it from Netbiz Technology, and the contract person is Yasir Arafat Phone: 01631-719163
Information of Safenet 32-3350BL cat6 cable
SAFENET 4-Pair U/UTP Cat6 LSZH cable has been designed to
support high speed data transmission systems such as Gigabit
Ethernet for mission critical LAN applications or future proofing
Structured Cabling Systems. The cable is characterized to
250MHz and Powersum NEXT tested. We conform that the
cable is used in a system to maximize cabling performance,
providing extended frequency response and enhanced.

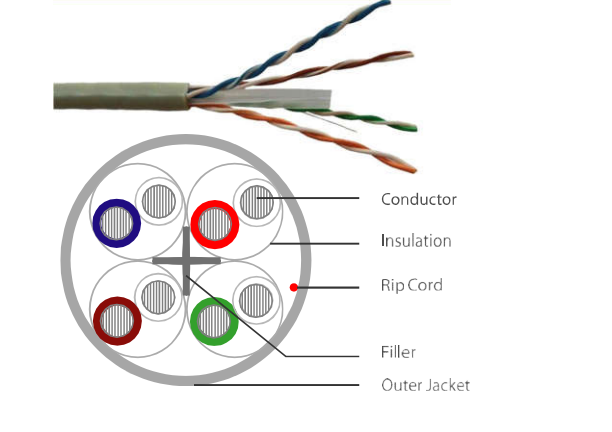

Products Characteristics of safenet 32-3350BL cat6 cable
| 1. Conductor Diameter: 0.57mm ± 0.008mm |
| 2. HDPE Solid Insulation: 1.02mm ± 0.02 mm |
| 3. HDPE Filler: 4.5* 0.45mm |
| 4. Outer Jacket Thickness: ≥ 0.50mm |
| 5. External Diameter: 6.2mm±0.5mm |
| 6. Linear Resistance: Max.<85Ω/km |
| 7. Mutual Capacity (nom.): 5.6nF/100M |
| 8. Unbalance Capacity Max (p/p at 1 KHz): 1500 pF/km |
| 9. Characteristic Impedance (1 to 100 MHz): 100 ±15Ω |
| 10. Velocity OF Propagation (f>1 MHz): 69% of c |
Key Feature of safenet 32-3350BL cat6 cable
- Compliant to TIA-568.2-D Category 6 cable specifications
- 23 AWG SOLID-Bare Copper Conductor
- Characterized and tested up to 250MHz
- 4 Pair with LSZH Outer Jacket
- ROHS Compliant & UL Approval, DELTA, GHMT
- Print legend contains footage marking from 305M to 001M
Application of safenet 32-3350BL cat6 cable
- IEEE 802.3: 1000BASE-T (Gigabit Ethernet), 100BASE-TX,
- 10BASE-T
- ANSI/TIA/EIA-854: 1000BASE-TX
- 155 Mb/s, 1.2 Gb/s ATM
- ANSI X3.263: 100 Mb/s
- IEEE 802.3af DTE Power (POE)
- 4/16 Mb/s Token Ring
- Digital Video
- Broadband and Baseband Analog Video
Complied Standards of safenet 32-3350BL cat6 cable
- ISO/IEC 11801:2011(Ed.2.2)
- IEC 61156-5:2009(Ed.2.0)
- EN 50173-1:2011
- EN 50173-2:2007 including amendment A1:2010
- ANSI/TIA-568-C.2:2009
- TIA/EIA-568B.2-2001
Reference Electrical Characteristics of safenet 32-3350BL cat6 cable
| Frequency MHZ | Return Loss (DB) | Attenuation (DB/110mm) | Next (DB) | PS Next (DB) | ELFEXT (DB) | PSELFEXT (DB) |
| 1 | 20.0 | 2.00 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.80 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25.0 | 5.30 | 59.3 | 57.3 | 47.8 | 44.8 |
| 20 | 25.0 | 8.50 | 54.8 | 52.8 | 41.8 | 38.7 |
| 62.5 | 21.0 | 14.40 | 47.4 | 45.4 | 42.0 | 29.1 |
| 100 | 20.1 | 19.80 | 44.3 | 42.3 | 27.8 | 25.0 |
| 150 | 18.9 | 24.70 | 41.7 | 39.7 | 24.3 | 21.3 |
| 200 | 18.0 | 29.00 | 49.8 | 37.8 | 21.8 | 19.0 |
| 250 | 17.3 | 32.80 | 38.3 | 36.3 | 20.4 | 17.0 |
What Is The price of safenet cat6 cable?
The safenet 32-3350BL cat6 cable price in Bangladesh is 16,000/-
Cat6 cable use benefit
- High Data transfer
- Clear Image view
- Copper Thickness
- Durable Ensure
- CCTV Monitoring
- Enhance Data transfer
Who is the authorize distributer of Safenet cat6 cable?
The authorize distributor of Safenet brand is Netbiz Technologies in Bangladesh and the Contract person is Yasir Arafat (01631-719163)
Where i ca buy Safenet cat6 cable?
You can buy it any IT company in Bangladesh like Star Tech, Rayans Computer, Nexus Computer, Techland, ITBazar ETC
Please contract for any safenet products blew Information
Phone: 01631-719163
Mail: arafat@netbiz.com.bd
Name: Yasir Arafat
